Our premium Ball Stud with Rivet Neck selection provides the essential pivot point for gas springs and dampers in automotive and industrial applications. Designed for high-stress environments, each ball stud features a precision-engineered rivet neck that ensures a permanent, vibration-resistant mount when installed through metal panels or brackets. These rivet-mount ball studs are available in various ball diameters and neck lengths to suit specific mechanical linkages. Buy ball studs with rivet necks in bulk or individual units to ensure long-lasting durability for your motion control assemblies.

Ball Stud With Rivet Neck

Ball stud with rivet neck is a smart, production-friendly way to add a smooth spherical pivot point to an assembly without overcomplicating installation. Our ball studs are built for clean, consistent articulation, helping linkages move the way they’re supposed to—steady, controlled, and without binding. When you need a fastening point that can handle motion while staying secure, this is the kind of component that keeps your build feeling “right.”

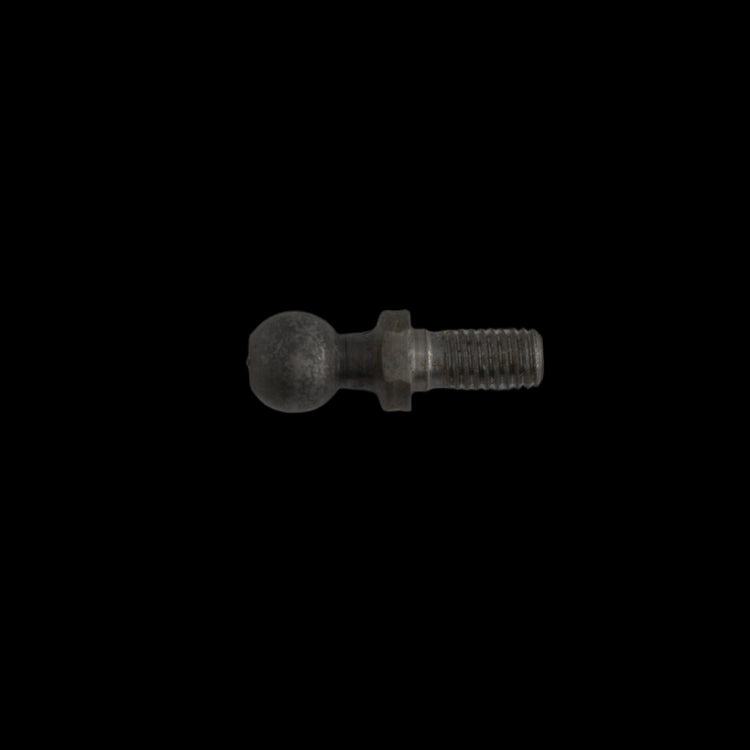

DIN 71803

Ball Stud With Rivet Neck Explained

A ball stud with a rivet-style neck is designed to be installed by press-fit or swaging, creating a strong mechanical hold in the parent material. Instead of relying on a traditional nut-and-bolt stack-up, the rivet neck allows for a compact, integrated connection that stays put once set. The result is a dependable ball pivot point that pairs perfectly with socket-style joints for controlled movement in tight spaces.

Ball studs with rivet necks are commonly used anywhere a spherical pivot is needed and you want a compact, secure installation. They’re a go-to choice for gas springs, dampers, and mechanical linkages because they allow parts to rotate and articulate without forcing alignment. When a system needs to move through an arc, absorb small misalignments, or cycle repeatedly, a spherical pivot point helps reduce stress on surrounding parts and keeps motion controlled instead of “fighty.”

In mechanisms that open, close, lift, or assist—think controlled motion rather than simple static fastening—this part earns its place quickly.

If your project also uses rigid fastening points in the same assembly, our Double Ended Stud and Fully Threaded Stud are easy complements for structural connections, while our Shoulder Bolt Socket Head is an excellent option when you need a guided bearing surface and precise alignment through a moving joint.

DIN 71803: A Standard Designed for Motion

Our ball stud with rivet neck follows the DIN 71803 standard, which defines ball studs intended specifically for applications that require spherical articulation. This standard is widely recognized in mechanical design because it supports repeatable fit, predictable geometry, and consistent performance when paired with matching socket components. In practical terms, that means fewer headaches during assembly, easier part matching, and motion that stays smooth over time.

Built for Fast, Consistent Installation

One of the biggest reasons engineers like a rivet neck design is how naturally it fits into efficient production. A press-fit or swaged installation helps create a set-and-forget connection that doesn’t loosen the way a multi-piece fastener stack can in certain applications. Once installed, the stud becomes a stable pivot point that supports consistent joint performance, which is exactly what you want when your assembly will cycle over and over again.

This also helps when space is limited. The rivet neck design reduces the need for extra hardware and simplifies the overall footprint, which can be the difference between an assembly that fits comfortably and one that requires redesign.

Smooth Movement, Better Reliability

Spherical pivots are all about forgiveness—in a good way. Our ball stud with rivet neck is built to support angular movement and small alignment variations, which helps prevent binding and uneven wear in linked components. That can translate into cleaner motion, quieter operation, and longer service life for the system around it. In real-world assemblies, reducing stress and friction at a moving joint often means fewer returns, fewer service calls, and fewer “why is this sticking?” moments after install.

FAQs

What is a ball stud with rivet neck used for in mechanical assemblies?

It’s used to create a secure spherical pivot point for a socket-style joint, allowing components to articulate smoothly through movement. You’ll often find it in systems like gas springs, dampers, and mechanical linkages where controlled motion and compact installation matter.

What load capacity can a ball stud with rivet neck typically handle?

Load capacity varies based on the ball size, stud geometry, installation method, and how the load is applied during operation. In most designs, it’s selected based on the expected working loads, cycle frequency, and the joint angle range to ensure reliable performance with an appropriate safety margin.

Can a ball stud with rivet neck be used in high-vibration environments?

Yes, it can be a strong choice for high-vibration environments because the rivet neck installation creates a mechanically set connection that resists loosening. As with any moving joint, it’s important to match the stud and socket correctly and confirm that the surrounding structure supports the vibration profile and repeated cycling demands.

In which industries is a ball stud with rivet neck most commonly applied?

These are widely used in automotive and transportation systems, industrial machinery, equipment manufacturing, and any product that relies on controlled motion hardware. They’re especially common wherever compact linkages, assisted lift mechanisms, or damping systems are part of the design.
