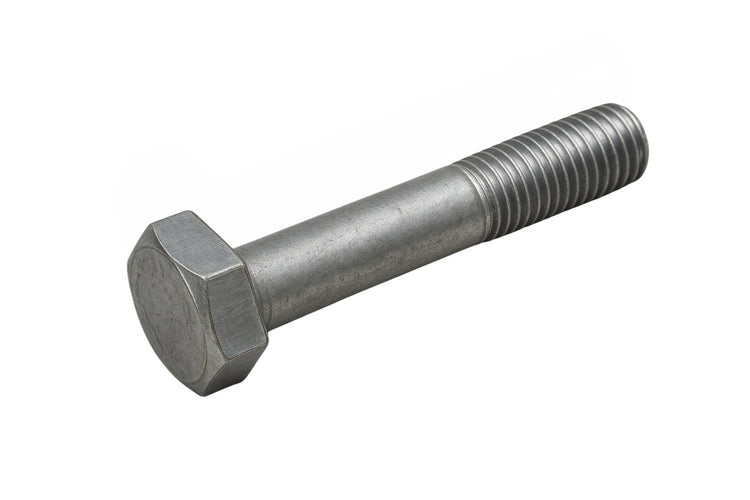

Hex Head Cap Screw (Partial Thread)

Our partially threaded hex head cap screws keep a smooth plain shank under the head with thread only on the lower part of the shank. The plain shank locates parts and carries shear across a solid section, while the six sided head takes a standard wrench for repeatable torque. Available in class 8.8, 10.9 and 12.9 steel and A2/A4 stainless.

Disclaimer: Product images are representative. Product specifications and descriptions govern the item you will receive.

Hex Head Cap Screw Partial Thread: Metric Sizes

What Is a Partially Threaded Hex Head Cap Screw?

A partially threaded hex head cap screw is a six sided fastener with a plain, unthreaded shank running down from the head and thread on the lower portion of the shank only. That plain shank is the whole point of the partial thread form. It gives a smooth, full diameter section that can locate parts against one another and take shear load across a solid cross section, which is stronger in shear than a threaded section of the same nominal size. The threaded end still delivers the clamp load through a nut, tapped hole, or insert.

Because the shank sets alignment and carries side load, this screw is a common pick for structural frames, machine bases, brackets, and any joint where two parts must line up and stay lined up under load. Choosing the right length matters here, since you want the plain shank to fill the clearance holes and leave enough thread for full nut engagement. The hex head takes a standard wrench or socket for solid, repeatable torque, and higher property classes let the joint carry heavy static and shifting loads.

There is a reason so many loaded joints call for a plain shank rather than full thread. Threads cut into the diameter of the bolt, so a threaded cross section is smaller and has stress raising roots that lower its shear strength. A smooth shank keeps the full diameter and a clean surface, so it carries shear better and slides through the clearance holes to set alignment. When the design shows a shear plane through the shank, a partially threaded screw of the right length keeps that plane on solid metal.

Key Features and Benefits

  • Plain Shank: The smooth full diameter shank locates parts and carries shear across a solid section.
  • Six Sided Drive: The hex head takes a standard wrench or socket for high, repeatable torque.
  • Strong in Shear: The unthreaded section is stronger in shear than thread of the same nominal size.
  • High Strength Classes: Class 8.8, 10.9 and 12.9 carry heavy static and shifting loads.
  • Steel and Stainless: Plated and alloy steel for strength and stainless for corrosion resistant service.

Materials and Finishes

  • Alloy Steel (Class 8.8, 10.9, 12.9): Heat treated for higher tensile strength in loaded joints.
  • Carbon Steel (Zinc Plated): A plated finish for general assembly and indoor use.
  • Stainless Steel (A2 / A4): For marine, outdoor, and corrosion prone environments.

Partial Thread Versus Full Thread

The choice between partial and full thread comes down to what the joint needs from the shank. A fully threaded screw gives thread across the whole grip, which is best when joint depth varies or when you want fewer lengths in stock. A partially threaded screw keeps a plain shank under the head, which locates parts and carries shear on a solid section.

Reach for partial thread when the design shows a shear plane through the shank, when two parts must be pinned into alignment, or when the plain shank needs to fill clearance holes with no play. Reach for full thread when the joint is shallow, when you thread into a nut and want maximum engagement, or when adjustability across grip lengths matters more than a locating shank.

Common Applications

Partially threaded hex head cap screws are used across structural steel, machine building, and equipment assembly. They join base frames and mounting plates, hold bearing housings and gear cases in line, and connect brackets and members that must not shift under load. In any bolted joint that sees side load or vibration, the plain shank carries the shear while the threaded end holds the clamp, which is why this form is so common in load bearing work.

Standards Compliance

  • DIN 931 / ISO 4014: Partially threaded hex head bolts
  • ISO 898-1: Mechanical properties for steel fasteners
  • ISO 261: Metric coarse thread pitch

Size Range and Availability

Available in M5 through M24 in metric coarse thread, in class 8.8, 10.9 and 12.9 alloy steel and A2/A4 stainless steel. If you need a size, class, or finish that is not shown, reach out and we will help you source it.

Frequently Asked Questions (FAQs)

1. What is a partially threaded hex head cap screw used for?

It is used for structural frames, machine bases, brackets, and any joint where the plain shank must locate parts and carry shear while the threaded end sets clamp load.

2. Why choose partial thread over full thread?

A plain shank locates parts precisely and is stronger in shear than a threaded section of the same size, which suits joints loaded from the side.

3. How do I pick the right length?

Choose a length where the plain shank fills the clearance holes and enough thread is left for full nut or tapped hole engagement.

4. Is the plain shank stronger in shear?

Yes. A solid full diameter shank carries shear better than thread of the same nominal size, since the thread reduces the effective cross section.

5. What property classes do you stock?

We stock class 8.8, 10.9 and 12.9 in alloy steel, along with A2 and A4 stainless.

6. Do these take a standard wrench?

Yes. The six sided head takes a standard metric wrench or socket for repeatable torque.

7. Are these available in stainless steel?

Yes. We stock them in A2 and A4 stainless along with plated and alloy steel.

8. What sizes do you stock?

We stock M5 through M24 in metric coarse thread across steel and stainless.
