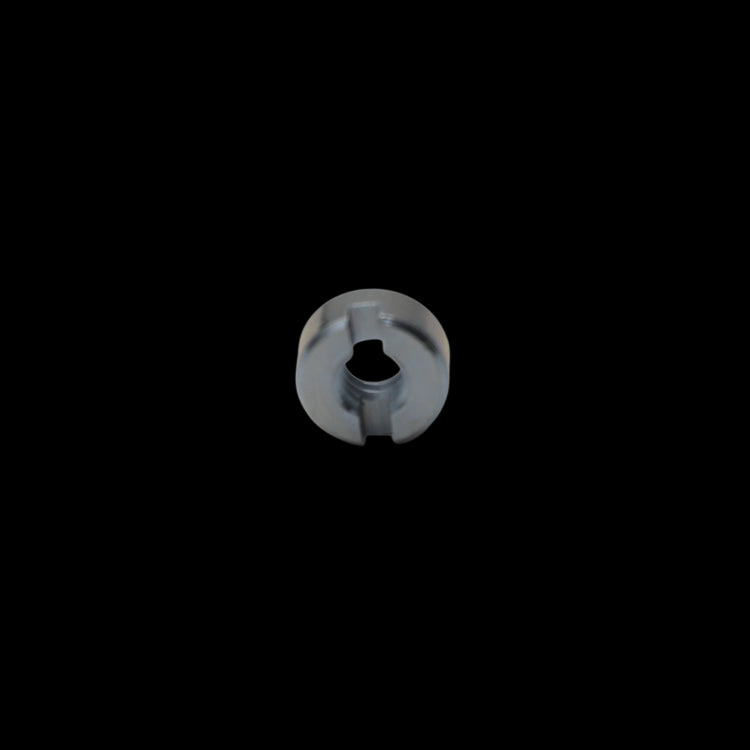

Round Slot Barrel Nut

Our round slot barrel nuts are cylindrical metric nuts with a cross-drilled thread and a screwdriver slot on the end face. Inserted into a drilled hole, the barrel accepts a bolt at 90 degrees to form a strong, concealed joint — the standard connector for flat-pack furniture, bed frames, handrails, and timber joinery.

Round Slot Barrel Nut — Metric Sizes

What Is a Round Slot Barrel Nut?

A round slot barrel nut — also known as a slotted cross dowel nut, sleeve nut, or cylinder nut — is a cylindrical fastener with a threaded hole drilled through its diameter and a screwdriver slot machined into one end face. The barrel is dropped into a hole drilled in the side of a panel or rail, then rotated with a flat-blade screwdriver until its thread aligns with the incoming bolt. Because the load is spread along the full length of the barrel, these nuts create far stronger joints in wood and tube than a threaded insert, which makes them the go-to connector for ready-to-assemble furniture, bed frames, staircases, balustrades, and aluminium extrusion framing.

Key Features and Benefits

• Screwdriver Slot Alignment: The slotted end face lets you rotate the barrel and align the thread with the bolt using an ordinary flat-blade screwdriver.
• Cross-Drilled Thread: The bolt enters at 90 degrees to the barrel axis, creating a concealed, mechanically locked right-angle joint.
• High Pull-Out Strength: Load is distributed along the barrel’s full length, giving far greater holding power in timber and tube than screws or inserts.
• Concealed, Reusable Joint: The finished connection is hidden inside the material and can be assembled and disassembled repeatedly without losing strength.
• Smooth Machined Finish: Precision-turned body slides cleanly into drilled holes for fast, accurate assembly on production lines.

Materials and Finishes

• Carbon Steel (Zinc Plated): Standard finish for furniture, bed frames, and general interior joinery.
• Carbon Steel (Nickel Plated): Brighter decorative finish for visible furniture connections.
• Stainless Steel (A2 / A4): For outdoor structures, balustrades, and damp or corrosive environments.

Standards Compliance

• Manufacturer standard dimensions — cross dowel / barrel nut pattern used throughout the furniture fittings industry
• Threads to ISO 261 / ISO 965 — Metric coarse thread dimensions and tolerances

Size Range and Availability

Available in M4 through M10 thread, with barrel diameters from 8mm to 16mm and lengths from 10mm to 35mm.

Frequently Asked Questions (FAQs)

1. What is a round slot barrel nut used for?

Round slot barrel nuts create strong right-angle joints in flat-pack furniture, bed frames, table legs, staircases, handrails, and aluminium tube framing. The barrel sits in a cross-drilled hole and receives a bolt at 90 degrees.

2. How do you install a barrel nut with a slot?

Drill a hole matching the barrel diameter across the joint, insert the barrel nut, then use a flat-blade screwdriver in the slot to rotate it until the threaded hole lines up with the bolt hole. Insert the bolt and tighten.

3. What is the difference between a barrel nut and a cross dowel?

They are the same fastener family. Cross dowel usually refers to the furniture version of a barrel nut; the slotted end face simply makes thread alignment easier during assembly.

4. Why use a barrel nut instead of a threaded insert in wood?

A barrel nut spreads the load along its entire length and bears against solid material, so it resists pull-out far better than a threaded insert, especially in particleboard, MDF, and softwoods.

5. What size hole do I drill for a round slot barrel nut?

Drill the cross hole to match the barrel diameter (for example, 10mm for a 10mm barrel) and a clearance hole for the bolt. A snug barrel fit keeps the joint tight and aligned.

6. What bolt is used with a barrel nut?

A standard metric bolt or furniture connector bolt (often a joint connector bolt with a wide flat head) matching the barrel’s thread — commonly M6 or M8 in furniture applications.

7. Can round slot barrel nuts be reused?

Yes. The joint can be disassembled and reassembled repeatedly, which is why barrel nuts are standard in knock-down and flat-pack furniture designed to be moved.

8. Are barrel nuts suitable for outdoor use?

Yes, in stainless steel. A2 stainless barrel nuts suit garden furniture and pergolas; A4 is recommended for coastal balustrades and marine joinery.

9. What thread sizes do you stock for round slot barrel nuts?

We stock M4 through M10 metric coarse thread, covering everything from light cabinet fittings to heavy bed frames and structural timber connections.

10. Do barrel nuts work in metal tube and aluminium extrusion?

Yes. Barrel nuts are widely used to join steel and aluminium tube in railing systems and machine frames; choose a barrel length matched to the tube diameter for full engagement.
