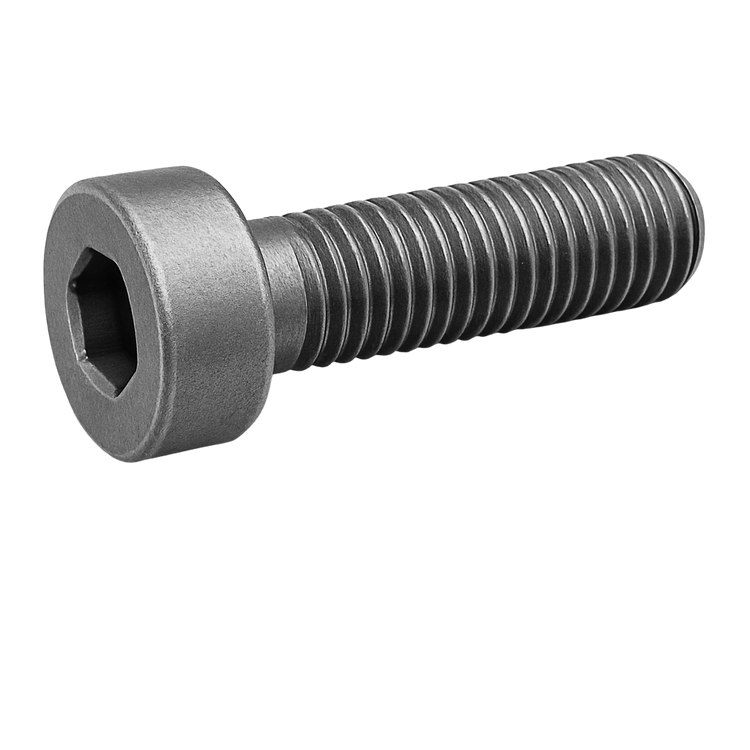

Low Head Socket

Engineered for applications with limited vertical clearance, our low head socket cap screws offer high-strength fastening in a compact profile. Meeting DIN 7984 standards, these precision fasteners provide a sleek, low-profile finish without compromising the reliability required for industrial and mechanical assemblies.

Disclaimer: Product images are representative. Product specifications and descriptions govern the item you will receive.

Low Head Socket Cap Screws — Metric Sizes

What Are Low Head Socket Cap Screws?

Low head socket cap screws are specialized fasteners designed with a significantly reduced head height compared to standard socket head cap screws. This geometry makes them the ideal solution for assemblies where space is restricted or where a low-profile aesthetic is desired. Despite their compact head, they feature a precision internal hex socket drive, allowing for secure tightening with a standard hex key.

Commonly manufactured to DIN 7984 specifications, these screws are perfect for high-precision engineering, robotics, and any application where components must pass closely over fastener heads.

Key Features and Benefits

Reduced Head Height: Ideal for tight clearances where a standard socket head would be too tall.
Internal Hex Drive: Provides efficient torque transmission and allows for installation in confined spaces.
Clean, Low-Profile Finish: Reduces the risk of snagging and provides a professional, streamlined appearance.
High-Strength Materials: Available in Grade 8.8 and 10.9 alloy steel, as well as stainless steel for corrosion resistance.

Materials and Finishes

Alloy Steel (Grade 8.8 / 10.9): Provides excellent tensile strength for structural and mechanical tasks. Black oxide finish offers mild protection and a professional look.
Stainless Steel (A2 / A4): Essential for marine, chemical, or food-processing environments where corrosion resistance is paramount.

Comparison: Standard vs. Low Head

While standard socket cap screws (DIN 912) are designed for maximum strength and torque, low head variants (DIN 7984) prioritize space savings. Because the head is thinner and the socket depth is shallower, low head screws have slightly lower load-carrying capacities and torque limits than their full-sized counterparts. They should be used specifically when clearance is the primary design constraint.

Frequently Asked Questions (FAQs)

When should I use a low head socket screw instead of a standard one? Use them when you have limited vertical clearance or when the fastener head must be as unobtrusive as possible.
What is the standard for low head socket cap screws? The most common metric standard is DIN 7984.
Are low head screws as strong as standard socket head screws? Generally, no. Because the head is smaller and the socket is shallower, they have lower recommended torque values and tensile strengths compared to DIN 912 screws.
Do they require a different hex key size? Often, yes. Because the head is smaller, the internal hex socket may be smaller than that of a standard socket cap screw of the same thread diameter.
Can I use these in high-vibration applications? Yes, but because they cannot be torqued as high as standard screws, we recommend using thread-locking compounds for added security.
What materials are available? We stock them in high-tensile alloy steel (8.8 or 10.9) and stainless steel (A2/304 and A4/316).
Are low head screws available with fine threads? Most stock items are metric coarse threads, but custom fine-thread options may be available upon request.
Are these the same as button head screws? No. Low head screws have a cylindrical head with a flat top, while button heads have a rounded, dome-shaped profile.
Can I countersink these screws? While possible, they are typically designed to sit on the surface or in a shallow counterbore due to their low-profile head.
What is the typical finish for alloy steel versions? They are most commonly supplied with a black oxide finish, which provides basic corrosion resistance and reduces light reflection.
