Rollpin

Rollpins are the quiet heroes of secure assembly, delivering dependable holding power exactly where you need it. Designed to compress on insertion and expand in place, our rollpins create a firm, vibration-resistant grip that saves time on the line and reduces downtime in the field. Choose our rollpins when you want fast, confident retention without overengineering the joint.

About The Product

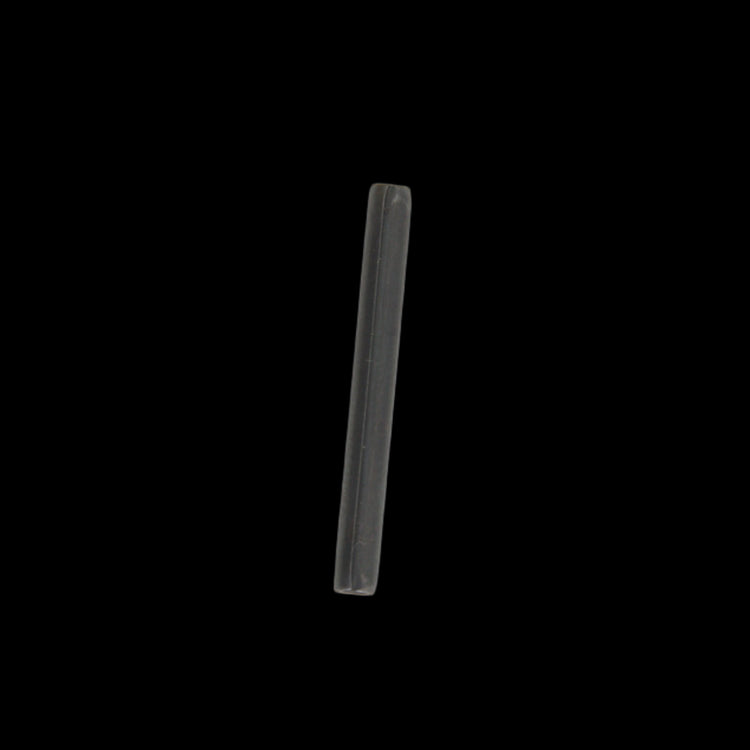

Our rollpins, often called slotted spring pins, are precision-formed tubular fasteners with a longitudinal slot that allows controlled compression during installation. Once seated in the bore, they rebound to press evenly against the hole wall, providing consistent retention for hinges, linkages, shafts, pulleys, and general alignment tasks.

Every detail of our rollpins is tuned for dependable retention: controlled spring force for hole protection, balanced wall thickness for repeatable compression, and consistent geometry for smooth insertion. The payoff is an assembly that feels tight on first fit and stays tight through cycles, shocks, and temperature swings. When you specify our rollpins, you’re choosing an easy-to-install, low-profile solution that elevates build quality without adding complexity.

If your build calls for a slightly different behavior or geometry, consider pairing this line with our Spiral Pin for multi-turn strength, our Spring Tension Pin for added compliance across varying hole tolerances, or our Groove Pin when you want a solid profile with incidental locking features.

ISO 8752: How Rollpins Work

In accordance with ISO 8752, slotted spring pins are engineered to compress as they enter the host hole and then expand to exert outward pressure. That elastic recovery distributes load around the circumference, stabilizing the joint under shear while absorbing shock and vibration. The result is a secure, reusable retention method that resists back-out without resorting to adhesives, staking, or complex hardware.

Where Rollpins Shine

Use our rollpins anywhere you need a reliable hinge pin, an alignment dowel that can forgive slight hole variation, or a lightweight retainer that won’t loosen under dynamic loads. They are especially effective in mechanisms that see frequent service, since removal and reinstallation can be performed quickly without damaging the mating components. From production fixtures to field-repair kits, rollpins deliver performance without the bulk or brittleness of solid pins.

Sizing and Standards

Selecting the right rollpin begins with the nominal hole size and the required shear capacity. Because the pin compresses on installation, the nominal diameter is intentionally larger than the hole to ensure a controlled interference fit. ISO 8752 outlines the geometry and duty classes that keep performance predictable across applications, so you can standardize on sizes with confidence and maintain interchangeability across builds.

Installation Made Simple

Our rollpins install cleanly with a press or hammer and a proper driver, aligning smoothly thanks to their tapered lead. The elastic design helps the pin find center in slightly out-of-round holes, and the outward spring pressure locks it in place once seated. For service, an appropriate drift or punch will release the pin without deforming the surrounding hardware, making scheduled maintenance and quick swaps straightforward.

FAQs

What is a rollpin used for in mechanical assemblies?

A rollpin is used to retain, align, or hinge components by creating an interference fit inside a drilled hole. Its spring action applies radial pressure around the bore to resist axial movement and shear, making it ideal for securing levers to shafts, locating parts during assembly, or acting as a hinge pivot in linkages.

How does a rollpin differ from a solid dowel pin?

Unlike a solid dowel, a rollpin is slotted and compressible. That elasticity lets it adapt to minor hole variation, damp vibration, and reduce the risk of hole damage during installation or removal. Solid dowels excel at ultra-precise, rigid location, while rollpins provide secure, serviceable retention with built-in compliance.

When should a spiral rollpin be used instead of a standard rollpin?

Choose a spiral rollpin when you want multi-wrap construction that distributes stress even more uniformly around the circumference. Spiral designs can provide smoother insertion, excellent fatigue resistance, and higher energy absorption in applications with frequent shock or cyclical loading.

How do you choose the correct rollpin size for an application?

Start with the host hole diameter and the required shear load, then select a pin whose nominal size ensures the recommended interference once compressed. Verify that the length spans the shear plane fully, and reference ISO 8752 duty classes to match spring force to your tolerance stack-up and service conditions.
