Square Nut (Thin)

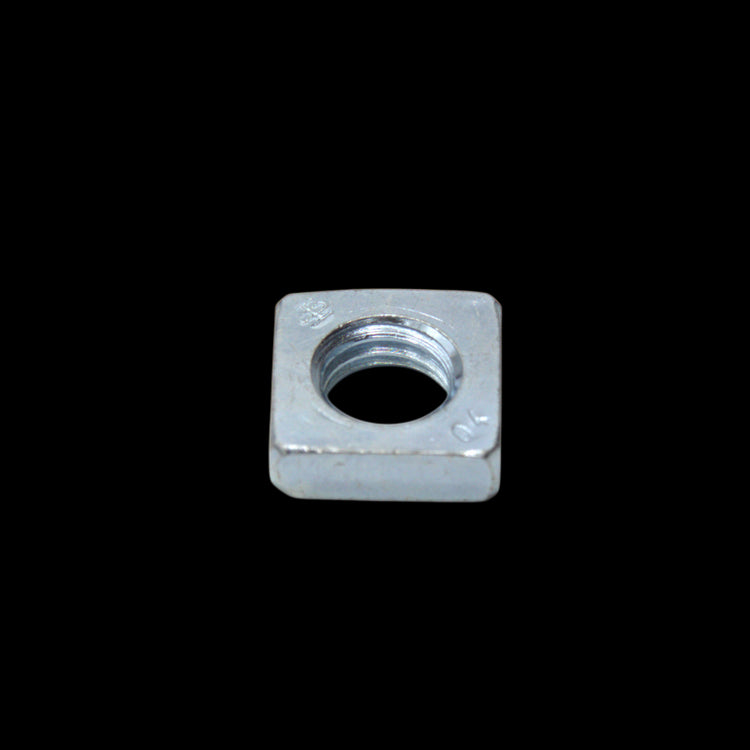

Our metric thin square nuts are low-profile, four-sided nuts engineered for T-slot aluminium extrusions, strut channel systems, and sliding fixture assemblies. Their square profile prevents rotation during tightening inside slot profiles, making them an efficient and tool-free positioning solution for machine guarding, modular framing, and adjustable industrial fixtures.

What Are Thin Square Nuts?

Thin square nuts are reduced-height square-profile metric nuts designed to drop into T-slots, channel sections, and profiled aluminium extrusion tracks. The square geometry locks against the slot sidewalls when torque is applied, eliminating rotation without requiring a secondary anti-rotation feature. The reduced thickness allows the nut to be inserted flat into the slot and then rotated 90 degrees to engage the undercut — a critical dimensional requirement for T-slot extrusion compatibility. Thin square nuts are a cornerstone component in modular machine frames, safety guarding systems, conveyor structures, and CNC workholding fixtures built from aluminium profile systems such as 30 series, 40 series, and 45 series extrusions.

Key Features and Benefits

• T-Slot Compatible Profile: Reduced thickness and precise square dimensions allow insertion and 90-degree rotation into standard metric T-slot extrusion profiles without disassembly.
• Self-Locking in Slot: The square profile bears against the slot sidewalls under load, preventing rotation and ensuring reliable clamping without secondary locking features.
• Modular Assembly Efficiency: Nuts can be inserted and repositioned along the slot at any point during assembly, enabling rapid reconfiguration of modular frames and fixtures.
• Low Profile Design: Minimal height reduces protrusion below the slot surface, allowing low-clearance bracket and component mounting arrangements.
• Carbon and Stainless Options: Available in zinc-plated carbon steel for standard industrial use and stainless steel for corrosive or food-grade environments.

Materials and Finishes

• Carbon Steel (Zinc Plated): Standard industrial specification for aluminium extrusion frames and machine guarding.
• Stainless Steel (A2): For food processing, washdown, and corrosive environment applications.
• Yellow Zinc (Grade 8): For higher clamping force requirements in heavy-duty structural extrusion assemblies.

Standards and Size Range

Metric thin square nuts are manufactured to DIN 562 and are available in M3 through M16 metric coarse thread. Width-across-flats dimensions are matched to standard T-slot profiles in 20, 30, 40, and 45 series aluminium extrusion systems.

Frequently Asked Questions

1. What are thin square nuts used for?

Thin square nuts are primarily used in T-slot aluminium extrusion systems for machine frames, safety guarding, conveyor structures, and modular industrial fixtures where repositionable, tool-free nut insertion is required.

2. How do thin square nuts work in T-slot extrusions?

The nut is inserted flat into the T-slot opening and rotated 90 degrees to position it behind the slot undercut. When the mating bolt is tightened, the nut is drawn up against the undercut and the square profile locks against the slot walls to prevent rotation.

3. What extrusion series are thin square nuts compatible with?

Thin square nuts are available in dimensions matched to 20, 30, 40, and 45 series metric aluminium extrusion T-slot profiles. Confirm the extrusion series and slot width when selecting the nut size.

4. What is the DIN standard for thin square nuts?

Thin square nuts conform to DIN 562, specifying reduced-height square nut dimensions and tolerances for metric thread sizes.

5. Can thin square nuts be used outside of T-slot applications?

Yes. Thin square nuts are also used in sheet metal assemblies, wooden panel connections, and anywhere a low-profile nut with anti-rotation geometry is needed in a confined or recessed space.

6. What size range do you stock for thin square nuts?

We stock thin square nuts in M3 through M16 metric coarse thread in both carbon steel and stainless steel.

7. Are stainless steel thin square nuts available?

Yes. A2 stainless steel thin square nuts are available for food processing, pharmaceutical, and washdown applications where hygiene and corrosion resistance are required.

8. What is the difference between a thin square nut and a standard square nut?

Thin square nuts (DIN 562) have a reduced height compared to standard square nuts (DIN 557), specifically engineered for T-slot insertion. Standard square nuts have a greater bearing height for general fastening applications where T-slot clearance is not a constraint.

9. Do thin square nuts require a washer?

In T-slot applications, washers are generally not required as the slot shoulder provides the bearing surface. In flat panel or sheet metal applications, a washer may be used to distribute clamping load.

10. Can I use thin square nuts for structural aluminium frame assemblies?

Yes. Thin square nuts are designed for structural extrusion assemblies. For heavy-duty structural applications, confirm that the clamping torque and load capacity of the nut grade and bolt combination meets the assembly's load requirements.
