• M5-0.8 x 25 mm Socket Head Cap Screw, 12.9, Cadmium Type I
1 1
DIN 912

M5-0.8 x 25 mm Socket Head Cap Screw, 12.9, Cadmium Type I

$0.28 USD
$0.28 USD
Sale Sold out
Shipping calculated at checkout.

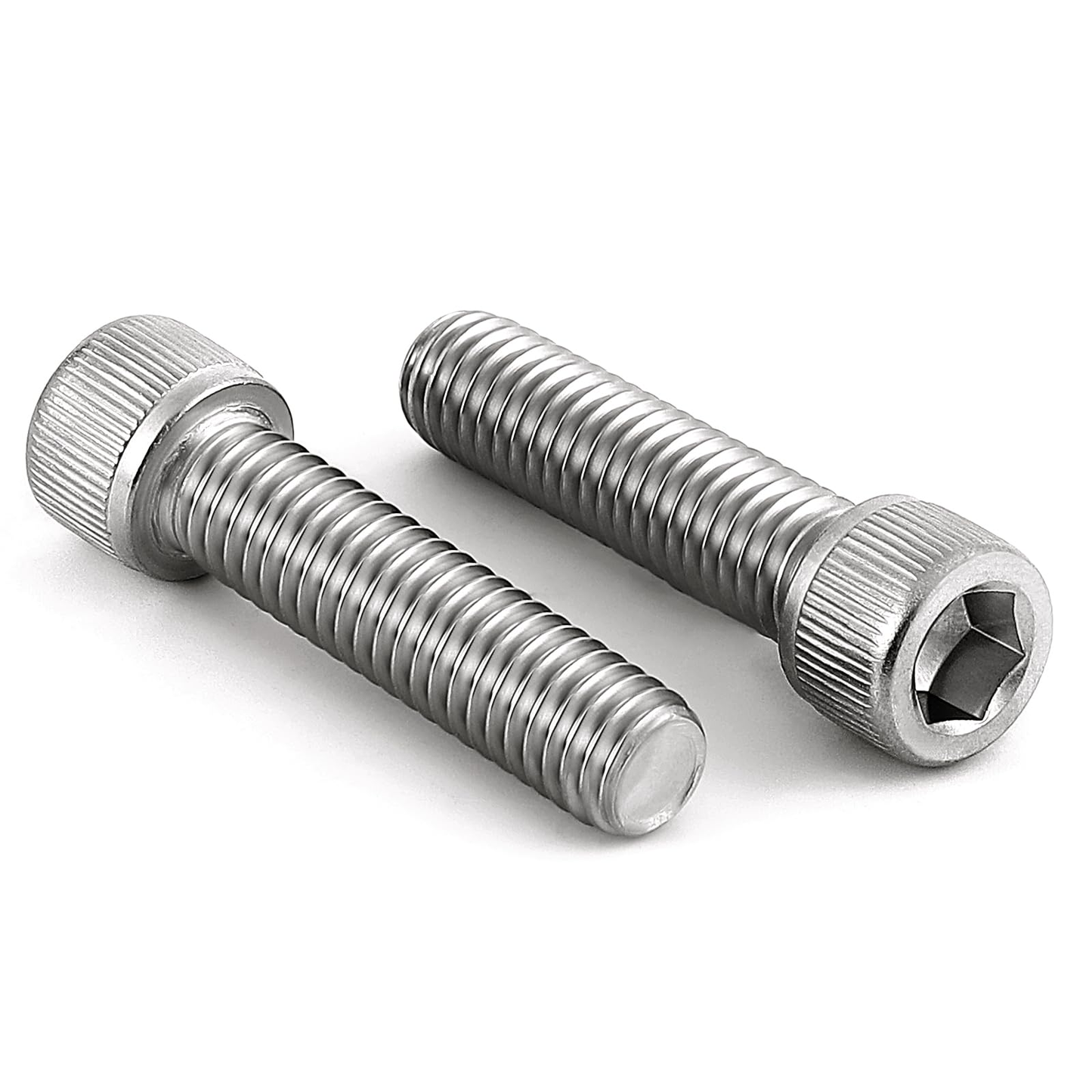

Images shown are for reference only. Product specifications and descriptions govern the item you will receive.

This M5-0.8 x 25 mm socket head cap screw is made to DIN 912 dimensions from steel and has a strength grade of 12.9. It has a coarse thread pitch of 0.8 mm. The screw has a cadmium Type I finish.

Specifications:

  • Standard: DIN 912
  • Diameter: M5
  • Thread Pitch: 0.8 mm (Coarse)
  • Length: 25 mm
  • Thread Type:
  • Strength Grade: 12.9
  • Material: Steel
  • Finish: Cadmium Type I
  • Thread Length:
  • Standard Thread Length Reference: 22 mm minimum for standard partial-thread versions
  • Special Features:
  • Weight: 1.276 g per piece
View full details
Specification :
  • Diameter:5
  • Thread Pitch:0.8
  • Strength/Plating:12.9, CAD
  • Thread Length:25
  • Weight: 1.276 g
